We are proud to partner with DVP Pumps of Italy.
DVP pumps provide exceptional quality, and are one of the major manufacturers of vacuum pump technology for over 50 years.
Bringing technology and performance to modern vacuum system requirements.
With pumps suitable for various industries, they are a reliable solution when considering which pump to choose for your application.

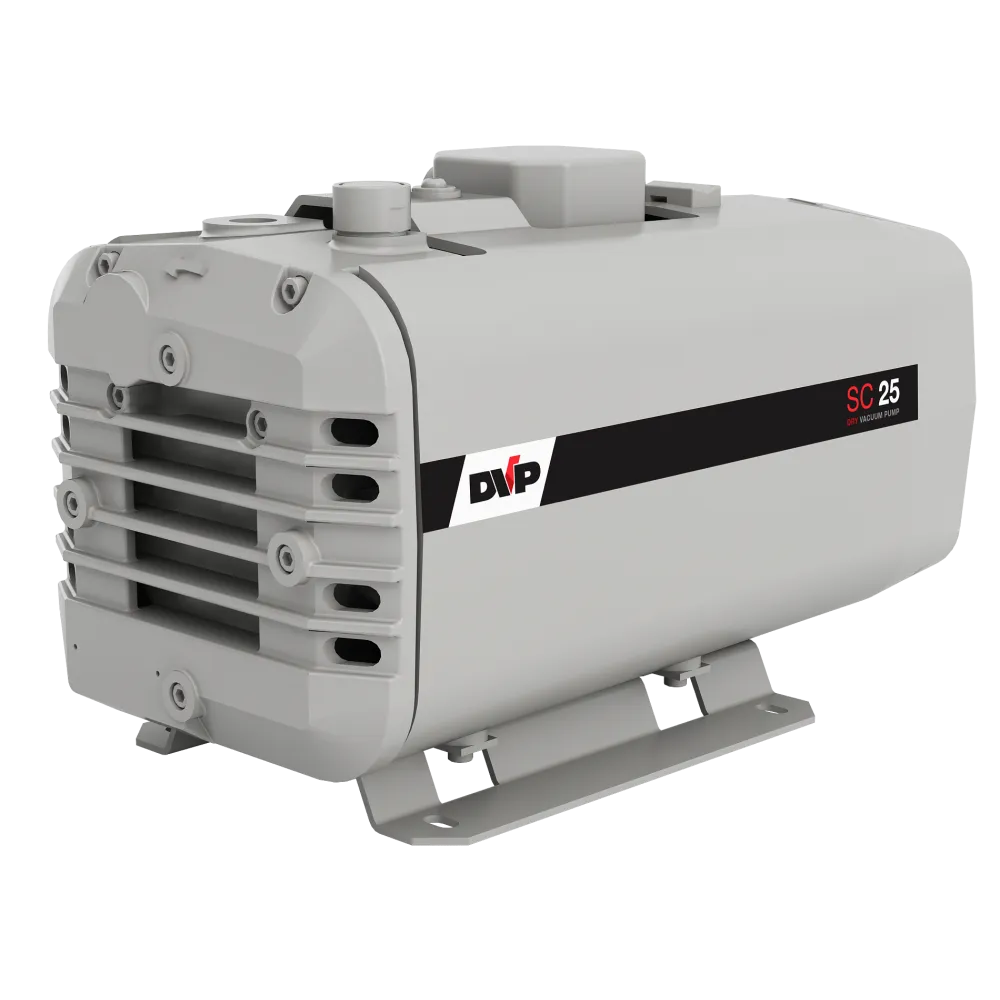

The rotary vane SC25 pump operates on the proven vane principle without the use of lubrication.
They are absolutely free of oil and feature a powerful fan to ensure good heat dissipation from the motor and pump body.
Oil-free rotary vane vacuum pumps consist of a rotor in an eccentric position rotating inside a cylindrical body.
This rotor is equipped with grooves in which the vanes are inserted. Because of the centrifugal force, during the rotation the vanes are pushed into contact with the body, creating close spaces that increase their volume drawing air from the container to be emptied and expelling it from the “outlet duct”. Oil-free rotary vane pumps can run continuously both at atmospheric pressure and at the highest vacuum. However, they cannot be used when the aspirated air contains moisture, oil or other traces of liquid.
All versions can be used as compressors.

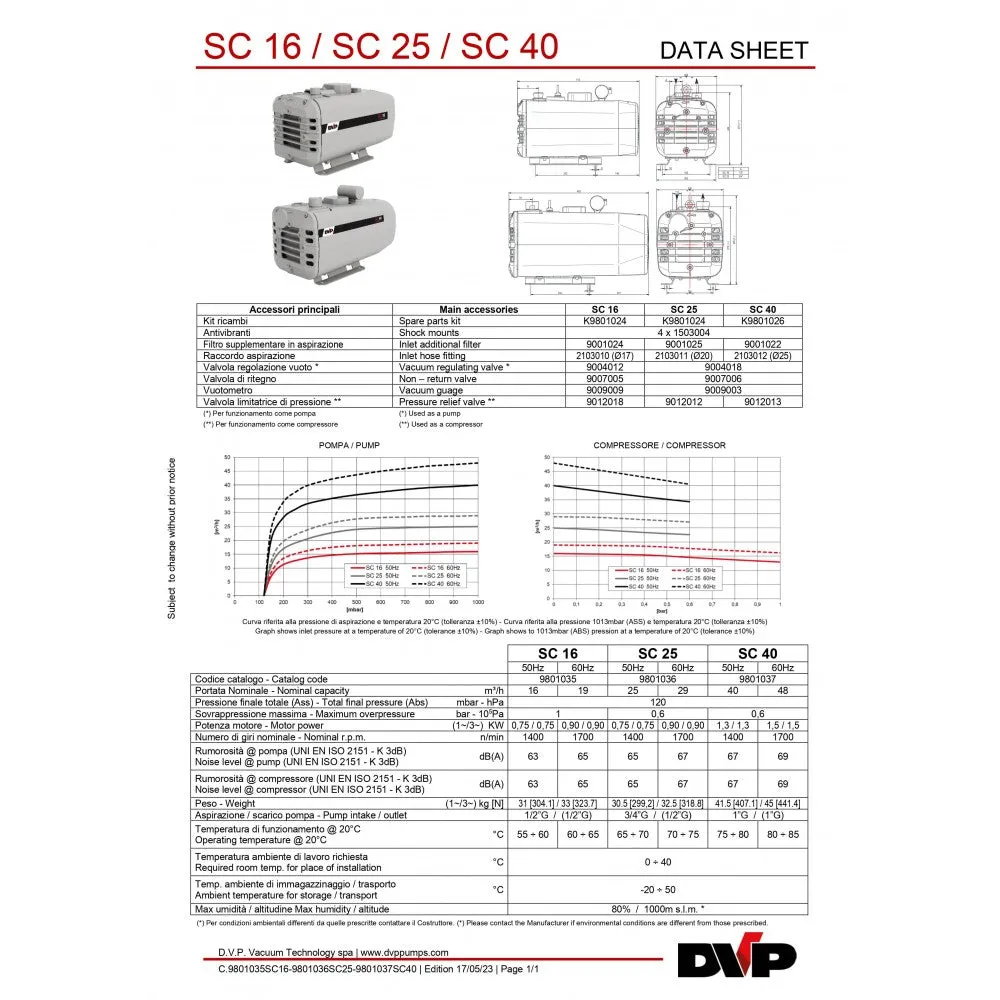

Operating voltage: 400V - 3 Phase
Nominal pumping speed / flow 50Hz m3 / h -> 25
Nominal pumping speed / flow 60Hz m3 / h -> 29
Final pressure hPa (mbar) -> 120
Motor Power kW 50Hz -> 0.75
Rated motor speed 50Hz min-1 -> 1400
Sound pressure level (DIN 45635) * 50Hz dB (A) -> 65
Weight kg -> 30.5
** This pump is available at 240 Volts. ( Please ask)
